Hammar H20 Automatic Liferaft Release Unit - Solas model for rafts of 6 persons and up
Low stock
add to wish listDescription

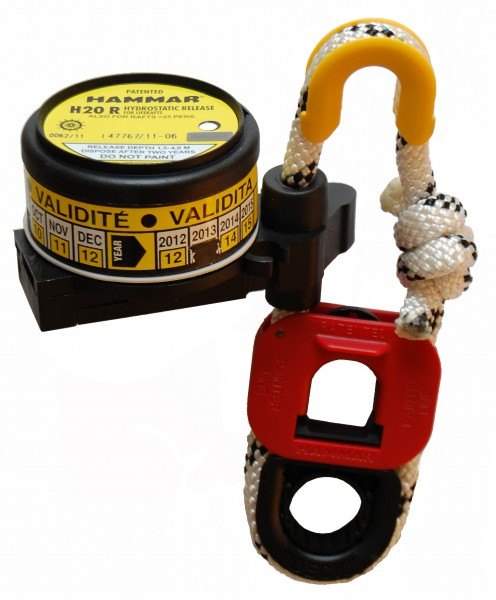

The Hammar H20 hydrostatic release unit is designed for liferafts from 6 up to 150 persons.
\Scratch off date upon installation.
\The Hammar H20 release unit consists of a double looped white rope line, a release mechanism and a Red Weak Link™ (breaking strength 2,2 ± 0,4kN). For smaller liferafts (from "" persons and outside SOLAS regulation) we recommend Hammar H20 Small Rafts model with a special weak link, identified by the green lower thimble (breaking strength 1,2 ± 0,4 kN).
The white strong rope of Hammar H20 is secured to the deck or liferaft cradle and attached to the liferaft lashing with a sliphook. If the ship sinks, the water pressure will, within 4 metres, activate the sharp knife which cuts the white strong rope and the liferaft will float free. As the ship sinks, the liferaft painter line will be stretched and the liferaft starts to inflate. The Red Weak Link™ breaks and survivors can board the floating liferaft. The Hammar H20 needs no annual service, maintenance or spare parts, and the expiry date is marked up upon installation.
Approvals
The Hammar H20 hydrostatic release units are approved all over the world, fulfil the requirements of the SOLAS 74/96 Convention, Reg. III/4 LSA Code, MO Res. MSC. 48/(66), IMO Res. MSC. 81(70), approved to EU Directive 96/98 EC on Marine Equipment and has a Nato stock number. Release depth 1,5 – 4,0 metres according to IMO/SOLAS regulations. The required certificates can be downloaded under Approvals.
